Detail Hot Slitting Machine, Hot Slitting, Stain, Nylon, Polyester, Slitting, Label, Ribbon, Tape, Pita, Lace, Webbing, Trimming

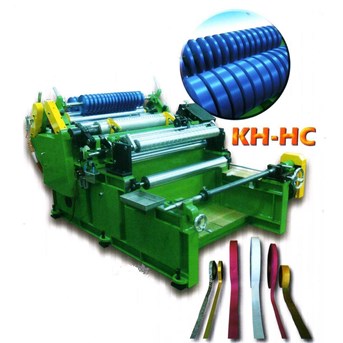

Kim Hong Hot Slitting Machine Model KH - HC
1. Application :
The machine is specially designed for hot slitting, slitting for stain, nylon, polyester, label, ribbon. Those materials need hot slitting.
2. Specifications :
a.Machine width : 1000 & 1700 mm
b.Unwind width Max. : 750 & 1500 mm
c.Unwind diameter Max. : 700 mm
d.Slitting Min. width : 10 & 30 mm
e.Main motor : DC 2 HP & DC 3 HP
f.Speed : 15 ~ 40 M/ min.
g.Rewind diameter Max. : 350 & 350 mm
3.Features :
a.Improve nearby curved phenomenon, provides finish products 100% straight lines.
b.Quick heat-up and cool-down, saving set-up time.
c.Easy tear down slittng knife and uniform heated.
d.Rewind tupe use air shaft, easy unloading
e.Use excellent tension control system, easy tension adjustment.
f.Stabel tension no matter thickness or thin matrial could rewind.
g.Fully equipped, easy operation
More details please mail to : kimhong78@ telkom.net
